一般結構用鋼板
Steel Plates for General Structure
主要用途
Steel plates for general structure? are widely used in engineering structures such as steel structure buildings, construction machinery, heavy duty cars, bridges, wind power， pressure vessels and so on.

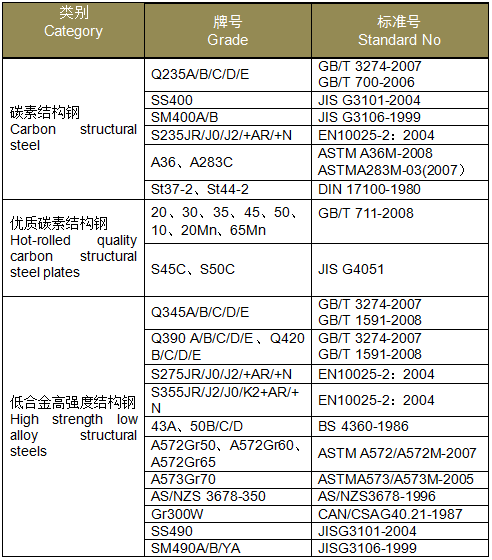

牌號和標準
產品規格
鍋爐和壓力容器用鋼板
Steel Plates for Boilers and Pressure Vessels
主要用途
They are mainly used to manufacture boilers and pressure vessels. The steel plates for pressure vessels can be fabricated into device that will sustain certain pressure, temperature and medium, so they are required to possess high strength, good toughness, weldability and surface quality. Many kinds and sizes of the products are required to deliver in heat treatment condition and satisfy ultrasonic test requirements. These steels are widely used in various sectors in national economy, such as reactor, heat exchanger, separator, spherical tank, oil tank, LPG tank ,boiler steam drum and pressure pipes in machinery, petroleum and chemicals, electric power and metallurgy industries, etc.
牌號和標準
|
名稱 |
牌號? Grade |
標準號 |
|
鍋爐和壓力容器用鋼板 |
Q245R、Q 345R、Q370R、Q420R |
GB/T 713 |
|
18MnMoNbR、13MnNiMoR、15CrMoR、12Cr2Mo1R、14Cr1MoR、12Cr1MoVR |
||
|
低溫壓力容器用鋼板 |
16MnDR、15MnNiDR、15MnNiNbDR、09MnNiDR |
GB/T 3531 |
|
08Ni3DR、06Ni9DR |
||
|
高強度罐體及水電壓力鋼管用鋼板 |
A537/SA537 CL2/CL3 |
美標 |
|
07MnMoVR、07MnNiVDR、07MnNiMoDR、12MnNiVR |
GB/T 19189 |
|
|
抗HIC/SSCC容器鋼板 |
Q245R(R-HIC)、Q345R(R-HIC)、(S)A516Gr60/65/70(R-HIC) |
用戶要求 |
|
高爐爐殼板 |
LK490C |
|
|
其他國外標準 |
A515/SA515、A516/SA516、A537/SA537以及A517/SA517系列等 |
美標 |
|
P355GH、16Mo3、13CrMo4-5 |
歐標 |
|
|
SPV355、SPV490 等 |
日標 |
產品規格
主要產品The main products郵箱：電話：
主要產品The main products郵箱：電話：
高強度結構用鋼板
High strength steel plates for structure
主要用途
High strength steel plates for structure have high strength, good low temperature toughness in addition to the excellent welding performance. They are mainly used for the fabrication of the high strength welding structure of construction machinery, coal mining equipment（hydraulic support, scraper conveyer）,boom, outrigger, frame , bulldozer, dump truck, drilling platform ,drilling rig and steel structure and so on. According to purpose，there are 60-80kg high strength steel plates，60-90kg low welding crack sensitive steel plates, quench and temper ultra-high strength steel plates etc.
牌號和標準
產品規格
高強度結構用鋼板
High strength steel plates for structure
主要用途
高強度結構用鋼板，具有高的強度和良好低溫韌性，焊接性能優良。主要用于制作高強度工程機械焊接結構、煤炭開采設備（液壓支架、刮板運輸機）、起重機吊臂支腿、車架、推土機、自卸車、鉆井平臺、鉆機、鋼結構等。根據用途可分為60-80kg級高強度結構鋼板、60-90kg級低焊接裂紋敏感性高強度鋼板、淬火回火超高強度鋼板等系列產品。
High strength steel plates for structure have high strength, good low temperature toughness in addition to the excellent welding performance. They are mainly used for the fabrication of the high strength welding structure of construction machinery, coal mining equipment（hydraulic support, scraper conveyer）,boom, outrigger, frame , bulldozer, dump truck, drilling platform ,drilling rig and steel structure and so on. According to purpose，there are 60-80kg high strength steel plates，60-90kg low welding crack sensitive steel plates, quench and temper ultra-high strength steel plates etc.
牌號和標準
60-80kg級高強度結構鋼板（60-80kg high strength steel plates ）
Q460C/D/E/F
GB/T16270-2009
GB/T 1591-2008
Q550C/D/E/F GB/T16270-2009
GB/T 1591-2008
Q690C/D/E/F GB/T16270-2009
GB/T 1591-2008
S460Q/QL/QL1
S500 Q/QL/QL1 EN10025-6：2004
S550Q/QL/QL1
S620 Q/QL/QL1 EN10025-6：2004
S690Q/QL/QL1 EN10025-6：2004
A514 Grade S ASTM A 514
60-90kg級低焊接裂紋敏感性高強度鋼板（60-90kg low welding crack sensitive steel plates Q460CFC/D/E YB/T4137-2005）
Q500CFC/D/E YB/T4137-2005
Q550CFC/D/E YB/T4137-2005
Q620CFC/D/E YB/T4137-2005
Q690CFC/D/E YB/T4137-2005
Q800CFC/D/E YB/T4137-2005
淬火回火超高強度鋼板
quench and temper ultra-high strength steel plates Q800C/D/E GB/T16270-2009
Q890C/D/E GB/T16270-2009
Q960C/D/E GB/T16270-2009
S890Q/QL/QL1 EN10025-6：2004
S960Q/QL/QL1 EN10025-6：2004
產品規格
鍋爐和壓力容器用鋼板
Steel Plates for Boilers and Pressure Vessels
主要用途
They are mainly used to manufacture boilers and pressure vessels. The steel plates for pressure vessels can be fabricated into device that will sustain certain pressure, temperature and medium, so they are required to possess high strength, good toughness, weldability and surface quality. Many kinds and sizes of the products are required to deliver in heat treatment condition and satisfy ultrasonic test requirements. These steels are widely used in various sectors in national economy, such as reactor, heat exchanger, separator, spherical tank, oil tank, LPG tank ,boiler steam drum and pressure pipes in machinery, petroleum and chemicals, electric power and metallurgy industries, etc.
牌號和標準
|
名稱 |
牌號? Grade |
標準號 |
|
鍋爐和壓力容器用鋼板 |
Q245R、Q 345R、Q370R、Q420R |
GB/T 713 |
|
18MnMoNbR、13MnNiMoR、15CrMoR、12Cr2Mo1R、14Cr1MoR、12Cr1MoVR |
||
|
低溫壓力容器用鋼板 |
16MnDR、15MnNiDR、15MnNiNbDR、09MnNiDR |
GB/T 3531 |
|
08Ni3DR、06Ni9DR |
||
|
高強度罐體及水電壓力鋼管用鋼板 |
A537/SA537 CL2/CL3 |
美標 |
|
07MnMoVR、07MnNiVDR、07MnNiMoDR、12MnNiVR |
GB/T 19189 |
|
|
抗HIC/SSCC容器鋼板 |
Q245R(R-HIC)、Q345R(R-HIC)、(S)A516Gr60/65/70(R-HIC) |
用戶要求 |
|
高爐爐殼板 |
LK490C |
|
|
其他國外標準 |
A515/SA515、A516/SA516、A537/SA537以及A517/SA517系列等 |
美標 |
|
P355GH、16Mo3、13CrMo4-5 |
歐標 |
|
|
SPV355、SPV490 等 |
日標 |
產品規格
結構用熱軋鋼板和鋼帶
Hot-rolled Steel Sheets and Strips for Structures
主要用途
結構用鋼一般具有較高的強度與較好的成型性能，通常經過簡單的加工后承受外部的載荷。適用于焊接、鉚接、鉸接等一般結構件用。該系列產品具有性能可靠，成型性能好，焊接性能優的特點，產品能夠應用于建筑結構、橋梁、船舶、鐵路車輛、管道大型機械及其他結構件等各個行業。主要按照國標進行供貨，也可參照日標和歐標進行供貨。
The structural steel generally has high strength and good formability, is
used to bear external load after simple fabrication and applicable to ordinary
structural members subject to welding, riveting and hinging.
This series of products are characterized by reliable performance, good
formability and excellent weldability, and can be used in various sectors like
building structures, bridges, ships, railway vehicles,
pipelines, large machineries and other structural members. The supply of those
products are mainly in accordance with Chinese national standards, and the
Japanese and European standards
may be taken as references as well.
牌號和標準
該系列產品可供牌號如下表所示，超出規格范圍可與我們聯系。
The available designations of this series of products are shown below, and please contact us if any required product is out of the range.
國標與日標牌號對應表
Cross Reference of the Steel Designations as per Chinese and Japanese Standards
|
標準 |
GB 912/GB3274/GB710/GB711 |
JIS G3101 |
|
牌號 |
Q195, Q215A |
SS330 |
|
Q235A, Q255A |
SS400 |
|
|
Q275A |
SS490 |
?
國標與德標、歐標牌號對應表
Cross Reference of Steel Designations as per Chinese, German and European Standards
|
標準 Standard |
GB 912/GB 3274 |
EN10025-2 |
DIN 17100 |
|
牌號 Designation |
Q195、Q215B |
S185 |
St33 |
|
Q235B |
S235JR |
St37-2，RSt37-2 |
|
|
Q235C |
S235J0 |
St37-3 |
|
|
Q235D |
S235J2 |
- |
|
|
Q275B |
S275JR |
St44-2 |
|
|
Q275C |
S275J0 |
St44-3 |
|
|
Q275D |
S275J2 |
- |
|
|
Q345A |
E295 |
St50-2 |
|
|
Q345B |
S355JR |
- |
|
|
Q345C |
S355J0 |
St52-3 |
|
|
Q345D |
S355J2 |
- |
|
|
Q345E |
S355K2 |
- |
?
產品規格
1.3-25.4*830-1900mm
主要產品The main products郵箱：250101電話：0531-67606362
核電用鋼板 SA738Gr.B
Steel plate for nuclear power SA738Gr.B
主要用途
具有較高的強度、良好的塑韌性和焊接性能，用于制造核反應堆廠房鋼質安全殼。
With high strength, good plasticity, toughness and weldability, suitable for manufacture of the steel containment vessel for the nuclear reactor plant.
牌號和標準
產品牌號： SA738Gr.B
Product grade: SA738GR.B
執行標準： ASME SA-738/SA-738M-2010
Applicable standard: ASME SA-738/SA-738M-2010
產品規格
4～120×1500～4100×Lmm
核電用鋼板 P235/265/295/355GH
Steel plate for nuclear power P235/265/295/355GH
主要用途
具有良好的塑性、韌性、冷彎性能和焊接性能。適用于制造核島鋼質安全殼、壓力容器、設備構件等。
With good plasticity, toughness, cold bending property and welding performance. Suitable for manufacture of the steel containment vessel for the nuclear island, pressure vessel, equipment components and so on.
牌號和標準
產品牌號： P235GH、 P265GH、 P295GH、 P355GH
Product grade: P235GH, P265GH, P295GH, P355GH?
執行標準： EN10028-2
?Applicable standard: EN10028-2
產品規格
4～90×1500～4100×Lmm
核電用鋼板 SA516GR55、 SA516GR60、 SA516GR65、 SA516GR70
Steel plate for nuclear power SA516GR55, SA516GR60
主要用途
具有較高強度、良好塑韌性和焊接性能，用于制造核電用壓力容器設備。
With high strength, good plasticity, toughness, and welding performance, suitable for manufacture of the pressure vessel and equipment components for nuclear power plant.
牌號和標準
產品牌號： SA516GR55、 SA516GR60、 SA516GR65、 SA516GR70
Product grade: SA516GR55, SA516GR60, SA516GR65, SA516GR70
執行標準： ASME SA-516/SA-516M-2010
Applicable standard: ASME SA-516/SA-516M-2010
產品規格
6~120×1500~4100×Lmm
核電用鋼板 SA517
Steel plate for nuclear power SA517
主要用途
具有高強度、良好的塑韌性和焊接性能，用于核電站機械模塊支撐件。
With high strength, good plasticity, toughness and weldability, suitable for manufacture of the mechanical module support for nuclear power plants.
牌號和標準
產品牌號： SA517Gr.B、 SA517Gr.F
Product grade: SA517GR.B, SA517GR.F
執行標準： ASME SA-517/SA-517M-2010
Applicable standard: ASME SA-517/SA-517M-2010
產品規格
4～120×1500～4100×Lmm
60-90kg 級低焊接裂紋敏感性高強度鋼板
60-90kg grade low welding crack susceptibility hig
主要用途
本產品系屈服強度 460、 500、 550、 620、 690、 800MPa 的低焊接裂紋敏感性鋼，具有省略焊前預熱、焊后無需熱處理的優 良的焊接性能，可用于各種煤礦機械、工程機械、港口機械、建筑機械及其它要求良好焊接性的結構部件等。
This product is the ? low welding crack susceptibility steel plate with the yield strengths of 460, 500, 550, 620, 690 and
800MPa, showing excellent welding performance due to no need of preheating before welding or heat treatment after welding, suitable for manufacture of various mining machinery, engineering machinery, port machinery, construction machinery and other structural components of good welding requirements.
牌號和標準
|
?Q460CFC/D/E Q500CFC/D/E Q550CFC/D/E Q620CFC/D/E |
? ??標準： YB/T4137-2005《 《低焊接裂紋敏感性高強度鋼板》
Standard: YB/T4137-2005: Low Welding Crack Susceptibility High Strength Steel Plate
|
|
?Q690CFC/D/E |
? |
|
?Q800CFC/D/E |
? |
|
?JG670CF ?G785CF |
??協議：
JGX698-2011《 JG670CF、 JG785CF 低焊接裂紋敏感性高強度鋼板技術協議》
Agreement: JGX698-2011: JG670CF and JG785CF Technical Agreement for
Low Welding Crack Susceptibility High Strength Steel Plate
|
產品規格
4～80×2200～3800×6000～12000mm
90-120kg 級系列淬火回火高強度鋼板
90-120kg grade series quenched and tempered high s
主要用途
本產品系屈服強度 800、 890、 960、 1030MPa 淬火回火交貨的高強度鋼，可用于礦山開采和各類工程施工用的設備，如鉆機、電鏟、 電動輪翻斗車、挖掘機、裝載機、推土機、混凝土泵車、消防云梯、各類起重機及煤礦液壓支架等。
This product is the quenched and tempered high strength steel plate with the yield strengths of 800, 890, 960 and
1030MPa, suitable for manufacture of equipment used in mining and all kinds of engineering construction, such as drilling rig, electric shovels, electric wheel dump trucks, excavator, loaders, bulldozers, concrete pump truck, fire ladder, various cranes, coal mine hydraulic supports and so on.
牌號和標準
|
? Q800C/D/E |
?
標準：
GB/T16270-2009《高強度結構用調質鋼板》
Standard: GB/T16270-2009: Quenched and Tempered Steel Plate for High Strength Structure
|
|
? Q890C/D/E |
? |
|
? Q960C/D/E |
? |
|
? JG1200D |
?
標準：
Q/3700LYS 299－2010《工程機械用超高強韌結構鋼板》
Standard: Q/3700LYS 299－2010: Ultra High Strength and Toughness Structural Steel Plate for Engineering
Machinery
|
產品規格
4～80×1500～3800×6000～12000mm
A、 B、 D、 E 級船體用結構鋼板
A, B, D and E grade structural steel plate for shi
主要用途
A、B、 D、 E 級系列產品具有良好的綜合機械性能、焊接性能、工藝性能。適用于造遠洋、沿海和內河航區船舶船體結構、船塢、 采油平臺、海洋中輸送管道、沿海發電廠、碼頭設施等結構件。
A, B, D, E GRADE SERIES PRODUCTS HAVE GOOD COMPREHENSIVE MECHANICAL PROPERTIES, WELDING PERFORMANCE AND PROCESS PERFORMANCE, SUITABLE FOR MANUFACTURE OF THE STRUCTURAL MEMBERS FOR SHIP HULLS, DOCKS,OIL PLATFORM, MARINE PIPELINE, COASTAL POWER PLANT, WHARF FACILITIES AND OTHER STRUCTURES IN OCEAN, COAST AND INLAND RIVER NAVIGATION AREA.
牌號和標準
牌號： A、 B、 D、 E（ Z25、 Z35）；
Grade: A, B, D, E (Z25, Z35);
執行標準：九國船規、漁規、 GB712-2000《船體用結構鋼》
Applicable standard: Rules for certification by the world's most famous nine recognized classification societies, regulations for fisheries, and GB712-2000 Structural Steel for Ship Hull
產品規格
4～60×1400～4100×4000～18000mm
主要產品The main products郵箱：3電話：0531-67606362
國標H型鋼
Chinese H-steel
主要用途
本產品為國標系列 H 型鋼，應用于各種鋼結構建筑領域。
This product is the national standard series h-beam, which is used in various steel structure building fields.
牌號和標準
產品牌號： Q235B、 Q345B
Product brands: Q235B, Q345B
執行標準： GB/T 700-2006、 GB/T 1591-2008、 GB/T 11263-2005
Executive standards: GB/T 700-2006, GB/T 1591-2008, GB/T 11263-2005
產品規格
國標系列全部規格
Gb series full specifications
美標H型鋼
American standard H-section steel
主要用途
本產品為美標系列 H 型鋼，應用于各種鋼結構建筑領域。
This product is an American Standard series H-section steel, suitable for use in various steel structure construction/building fields.
?
牌號和標準
產品牌號：A36、GR50
Product grade: A36, GR50
執行標準：ASTM A36/A36M、ASTM A572/A572M、ASTM A6/A6M
Applicable standard: ASTM A36/A36M, ASTM A572/A572M, ASTM A6/A6M
產品規格
ASTM A6/A6M 內所有 H 型規格。
ASTM A6/A6M related H-section specification.
?
歐標H型鋼
EN H-section steel
主要用途
本產品為歐標系列 H 型鋼，應用于各種鋼結構建筑領域。
This product is an European Norm series H-section steel, suitable for use in various steel structure construction/building fields.
?
牌號和標準
產品牌號： S235JR/J0/J2、 S275JR/J0/J2、 S355JR/J0/J2/K2、 S450J0
Product grade: S235JR/J0/J2, S275JR/J0/J2, S355JR/J0/J2/K2, S450J0
執行標準： EN10025、 BS4-1、 EN1003。
Applicable standard: EN10025, BS4-1, EN1003.
產品規格
BS4-1《結構用型鋼》內所有規格。
BS4-1 related all specifications under Structural Section Steel.
?
日標H型鋼
Japanese standard H-section steel
主要用途
本產品為日標系列 H 型鋼，應用于各種鋼結構建筑領域。
This product is a Japanese Standard series H-section steel, suitable for use in various steel construction/structure building fields. .
?
牌號和標準
產品牌號： SS330、 SS400、 SS490、 SM400A/B/C、 SM490 A/B/C、 SM490YA/YB、SN400A/B/C、 SN490B/C
Product grade: SS330, SS400, SS490, SM400A/B/C, SM490 A/B/C, SM490YA/YB, SN400A/B/C, SN490B/C
執行標準： JIS 310、 JIS 3106、 JIS G3136、 JIS 3192。
Applicable standard: JIS 310, JIS 3106, JIS G3136, JIS 3192.
?
產品規格
JIS 3192 內所有 H 型規格。
JIS 3192 related allH -section steel specification.
?
澳標H型鋼
Australian Standard H-section steel
主要用途
本產品為澳標系列 H 型鋼，應用于各種鋼結構建筑領域。
This product is an Australian Standard series H-section steel, suitable for use in various steel structure construction/building fields.
?
牌號和標準
產品牌號： Grade300
Product grade: Grade300
執行標準： AS/NZS 3679.1:19JISG3192
Applicable standard: AS/NZS 3679.1: 19JISG3192
產品規格
AS/NZS 3679.1:19JISG3192 內所有 H 型規格。
AS/NZS 3679.1: 19JISG3192 related all H-section steel specification.
?
俄標H型鋼
Russian Standard H–section steel
主要用途
本產品為俄標系列 H 型鋼，應用于鋼結構建筑、石油工程領域。
This product is a Russian Standard series H-section steel, suitable for use in steel structure construction/building and petroleum engineering fields.
?
牌號和標準
產品牌號： C245、 C255、 C345
Product grade: C245, C255, C345
執行標準： сто АСЧМ -20-93
Applicable standard: сто АСЧМ -20-93
?
產品規格
35Ш2。
耐低溫用H型鋼
Low temperature resistant H–section steel
主要用途
本產品主要應用于機械制造、高層建筑、橋梁閘壩等行業，特別是北方寒冷地區耐低溫要求的醫院、體育場館、商場、交通樞紐 的重大建筑工程和鋼構中。
This product is mainly used in machinery manufacturing, high-rise buildings, bridges, gates/dams and other industries, especially the major construction projects and steel structure in the hospitals, stadiums, shopping malls, transportation hubs in the northern cold areas where there is a requirement for low temperature.
?
牌號和標準
產品牌號： Q345C/D/E/EL、 Q420D/EM、 Q460EM
Product grade:Q345C/D/E/EL ,Q420D/EM ,Q460EM
執行標準： GB/T 1591 和技術協議
Applicable standard: GB/T 1591 and technical agreement
?
產品規格
H100×100～H900×300
高強度H型鋼樁
High strength H–section steel pile
主要用途
本產品適用于香港、東南亞等地區深基坑建設，主要用作高層建筑基礎和主要承重結構制作。
This product is suitable for deep foundation pit construction in Hongkong, Southeast Asia and other areas, mainly used in high-rise building foundation and the main load-bearing structure.
?
牌號和標準
產品牌號： S450J0
Product grade: S450J0
執行標準： GB/T 11263
Applicable standard: GB/T 11263
產品規格
UC305×305 系列
UC305×305 Series
耐火耐候H型鋼
Fire resistant and weather resistant H-section ste
主要用途
本產品適用于對耐候性能和防火性能有一定要求的鋼結構建筑工程。
The product is suitable for the steel structure construction engineering which has certain requirements for weather resistance and fireproof performance.
?
牌號和標準
產品牌號：LWFR490
Product grade: LWFR490
執行標準：GB/T 1591 和技術協議
Applicable standard: GB/T 1591 and technical agreement
產品規格
H100×100～H900×300
抗震性能H型鋼
Seismic resistant H-section steel
主要用途
本產品主要在地震多發地區鋼結構領域應用，主要應用于建設醫院、體育場館、商場、 交通樞紐以及地震避難場所等人員密集的 公共服務設施國家公共安全的重大建筑工程。
This product is mainly used in the steel structure field of the earthquake prone areas, mainly suitable for construction of hospitals, stadiums, shopping malls, transportation hubs, earthquake shelters and other crowded public service facilities and major construction projects for national public security.
?
牌號和標準
產品牌號： Q345S
grade: Q345S
執行標準： GB11263
Applicable standard: GB11263
產品規格
HH250×250~H900×300
核電用H型鋼
H-section steel for nuclear power plant
主要用途
在核島內主要用于模塊支架的制作，對質量要求嚴格，且要求具有一定的耐腐蝕能力。
Mainly used within the nuclear island for the manufacture of the module supports, which has strict requirements for quality, and requirements for a certain corrosion resistance.
?
牌號和標準
產品牌號： S235J0
Product grade: S235J0
執行標準： EN10025、 BS4-1、 EN10034
Applicable standard: EN10025, BS4-1, EN10034
產品規格
HEB 100、 HEB 140、 HEB 200
船體及石油工程用鋼
Steel for ship hulls and petroleum projects
主要用途
主要應用于船舶內部構造用結構件。石油平臺用 H 型鋼應用于石油平臺整體結構建造領域。
Mainly used for structural parts of internal structures of ships. Petroleum platform H-section steel is used in the construction of integral structure of petroleum platform.
牌號和標準
產品牌號： SM490YB、 A、 D、 D36、 AH32、 DH36。
?Product grade: SM490YB, A, D, D36, AH32, DH36.
執行標準： JIS G3106、 GB 712-2000、 ASTM A578-B
Applicable standard: JIS G3106, GB 712-2000, ASTM A578-B
?
產品規格
國標、英標、美標和歐標等規格產品。
Chinese Standard, British standard, European Standard, American Standard and other specifications for products.
鐵路接觸網支柱用H型鋼
H-section steel for pillars/supports of railway ca
主要用途
主要應用于鐵路領域的接觸網支柱，是鋼筋混凝土接觸網支柱的替代產品。
Mainly used in manufacture of the pillars/supports for railway catenary system, as an alternative product of the reinforced concrete pillars/supports for the catenary system.
牌號和標準
產品牌號： Q235B/C/D、 Q345B/C/D/E
Product grade: Q235B/C/D, Q345B/C/D/E
執行標準： GB/T 700、 DIN 1025-2、 EN 10034
Applicable standard: GB/T700 , DIN 1025-2 , EN 10034
產品規格
IPB240、 IPB（ V） 240T、 IPB260、 IPB280、 IPB300
電網建設用大角鋼
Large-sized angle steel for power grid constructio
主要用途
主要用于超高壓輸電線路中的鐵塔制作，具有強度高、承載能力大的特點，可以有效提高鐵塔的安全性能，同時還可以減少鐵塔整體重量，降低鐵塔制作成本。
Mainly used in fabrication of tower for EHV power transmission line, characterized by high strength and large
load-bearing capacity, capable to effectively improve the safety performance of the tower, and also reduce the overall weight of the tower and lower the cost for tower manufacturing.
?
牌號和標準
產品牌號： Q345B、 Q420B、 Q420C、 Q420D、 Q460C、 Q460D
Product grade: Q345B, Q420B, Q420C, Q420D, Q460C, Q460D執行標準： GB/T 700
Applicable standard: GB/T 700
產品規格
∠220、∠250 系列
∠220, ∠250 Series礦山工程用鋼
Steel for mining projects
主要用途
主要用于礦山隧道支護，特別是一些圍巖變形量較大的巷道，也對礦用支護型鋼的性能提出了特殊的要求。
Mainly used in mine tunnel supports, especially for some roadways with relatively large deformation of surrounding rock, and also used in structures with special requirements for the performance of the mine supporting steel.
牌號和標準
產品牌號： 20MnVK、 Q275
Product grade: 20MnVK, Q275
執行標準： YB/T 5047-2000
執行標準： YB/T 5047-2000
產品規格
9、 11、 12、 29U、 36U
鐵路車輛大梁用鋼
Steel used for frame of railway vehicle
主要用途
主要用于 70 噸及以上的鐵道車輛平車的大梁。
Mainly used in manufacture of the frame for the railway vehicle platform wagon of 70 tons and above.
牌號和標準
產品牌號： Q420NQR1
Product grade: Q420NQR1
?執行標準： YB/T5182
Applicable standard: YB/T5182
?
產品規格
630×200 系列
630×200 Series
汽車大梁用鋼
Steel for automobile frame
主要用途
本產品為專用型鋼，主要應用于汽車、掛車、半掛車大梁，是焊接 H 型鋼的替代產品。
This product is a dedicated steel, mainly used in manufacture of frames for automobile, trailer and semi-trailer girder, as an alternative to the welded H -section steel.
?
牌號和標準
產品牌號： LG510LH、 LG610LH、 LG710LH
Product grade: LG510LH, LG610LH, LG710LH執行標準： GB/T 11263
Applicable standard: GB/T 11263
產品規格
446×150、 456×150、 470×150、 482×153.5、 492×150、 504×153
叉車門架用鋼
Steel for forklift portal-frame
主要用途
該產品主要應用于叉車制造業，主要用于制作 1.5～10t 規格叉車的門架制作。
This product is mainly used in forklift manufacturing industry mainly for manufacture of portal frame for forklift truck of 1.5~10t.
牌號和標準
產品牌號： HRB335、 20MnSi、 20MnSiV、 Q420C、 Q440C、 Q460C
Product grade: HRB335, 20MnSi, 20MnSiV, Q420C, Q440C, Q460C執行標準： Q/3700LYS247
Applicable standard: Q/3700LYS247
產品規格
C140b、 C160a/b、 C164b、 C180b、 C200b、 C220b、 C250b； J160a、J160b、 H120、 H140。
履帶板
Track plate
主要用途
履帶板主要用作鏈軌式挖掘機、推土機的行走部件。
Track plate is mainly used for manufacture of the travelling parts of track-mounted excavator and bulldozer
牌號和標準
產品牌號： 25MnB、 23MnBM
Product grade: 25MnB, 23MnBM執行標準： 《履帶用熱軋型鋼技術協議》
Applicable standard: Technical Agreement on Hot-rolled Section Steel for Track
產品規格
LW190×8.5、 LW190×10、 LW135×6
中低速磁懸浮列車軌排
Middle and low speed Maglev train track skeleton
主要用途
應用于中低速磁懸浮列車軌道。
Used in medium and low speed maglev train track.
牌號和標準
產品牌號： Q235B、 LWR345B、 LWR345C、 LWR295D
Product grade: Q235B, LWR345B, LWR345C, LWR295D執行標準： Q/LYS 280、 Q/CYBM 004
Applicable standard: Q/LYS 280, Q/CYBM 004
產品規格
LGF372×96、 LGF372×96WR、LGH230×200Z、 LGH230×200ZWR
海洋工程用鋼
Steel for ocean projects
主要用途
主要應用于海洋石油平臺整體結構建造 、平臺配套海上浮式儲油船（FPSO ）模塊制作、船艙頂梁及框架等結構制造。
Mainly used in construction of offshore oil platform structure, fabrication of platform supported Float Production
Storage and Offloading (FPSO ) module, manufacture of roof beam and frame structure of cabin.
牌號和標準
產品牌號： S275J2、 S355NL
Product grade: S275J2, S355NL執行標準： DNV、 EN10025-3
Applicable standard: DNV, EN10025-3
產品規格
H200B～HE1000B， UPN 系列槽鋼、UPE 系列、 IPE 系列、角鋼系列
H200B~HE1000B and UPN series channel steel, UPE series, IPE series and angle steel series
主要產品The main products郵箱：2電話：0531-67606362
高端齒輪鋼
High-end gear steel
主要用途
具有良好的強度、韌性及穩定性。用于械裝備中的重要零件，如機床、飛機、汽船及風扇等。
Provided with good strength, toughness and stability, suitable for use in the manufacture of important parts in mechanical equipment, such as machine tools, aircraft, steam boats, fans, etc..
牌號和標準
產品牌號： SCM822H、 SAE8620H、 18NiCrMo5、
Product grade: SCM822H, SAE8620H, 18NiCrMo5,
執 行 標 準 ： Q/370000SGT 103-2013 、 Q/370000SGT 100-2013 、EN10084-2008
Applicable standards: Q/370000SGT 103-2013, Q/370000SGT 100-2013, EN10084-2008
產品規格
Φ20～Φ310
高端軸承鋼
High-end bearing steel
主要用途
具有較高的淬透性、耐磨性，疲勞性能良好。用于電動機、發電機、內燃機、燃汽輪機、機床主軸等變速裝置。
Provided with high hardenability, wear resistance and good fatigue performance, suitable for use in manufacture of motor, generator, internal-combustion engine, steam turbine, machine tool spindle and other speed changing devices.
牌號和標準
產品牌號： GCr15SiMn
Product grade: GCr15SiMn
執行標準： GB/T18254-2002
Applicable standard: GB/T18254-2002
產品規格
Φ20~Φ310
鐵路用鋼
Railway Steel
主要用途
具有較高的強度、耐低溫沖擊性能。使用于拉貨火車車廂連接件裝置等。
Provided with high strength and low temperature impact resistance, suitable for use in manufacture of the connecting pieces for freight train carriage and other devices
牌號和標準
產品牌號： 25MnCrNiMoA
Product grade: 25MnCrNiMoA?
執行標準：技術協議
Applicable standard: Technical agreement
產品規格
Φ20～Φ310
風電用鋼
Steel for wind power
主要用途
具有較高強度、良好的耐低溫沖擊性能。使用于風電行業。
Provided with high strength and good low temperature impact resistance, suitable for use in wind power industry.
牌號和標準
產品牌號： S355NL
Product grade: S355NL
執行標準：技術協議
Applicable standard: Technical agreement
產品規格
Φ350～Φ800
石油管線用連鑄圓坯
Continuous casting round billet for petroleum pipe
主要用途
具有較高的強度及抗硫化氫腐蝕性能。用于石油化工行業。
Provided with high strength and hydrogen sulfide corrosion resistance, suitable for petrochemical industry.
牌號和標準
產品牌號： X52NS
Product grade: X52NS
執行標準：技術協議
Applicable standard: Technical agreement
產品規格
Φ350~Φ800
系泊鏈及船用錨鏈用鋼
Steel for mooring chain and marine anchor chain
主要用途
具有高強度、良好的韌性，而且具有好的耐海水腐蝕、耐磨損性能。使用于海洋石油開采及船舶構件等。
Provided with high strength and good toughness as well as good resistance to seawater corrosion and abrasion resistance, suitable for use in manufacture of structural components for offshore oil production and ship.
牌號和標準
產品牌號： CM490、 CM690
Product grade: CM490, CM690
執行標準： GB/T 18669
Applicable standard: GB/T 18669
產品規格
Φ20~Φ310
模具用鋼
Die steel
主要用途
淬透性高，熱處理變形率較低，其性能及使用壽命高。使用于模鍛錘鍛模、鋁合金壓鑄模、熱擠壓模具、高速精鍛模具及鍛造壓 力機模具。
Provided with high hardenability, low deformation rate of heat treatment, high performance and long service life, Suitable for use in manufacture of die forging hammer forging die, aluminum alloy die-casting die, hot extrusion die, high speed precision forging die and forging press die.
牌號和標準
產品牌號： H13
Product grade: H13
執行標準:GB/T1299—2000
Applicable standards: GB/T1299-2000
產品規格
Φ20～Φ310
高壓鍋爐用無縫鋼管用鋼
Steel for seamless steel tubes for high pressure b
主要用途
具有良好的塑性、 焊接性能及良好的抗高溫氧化及耐腐蝕性能。 用于高壓鍋爐爐壁、核電熱交換器、石油裂化裝置等。
Provided with good plasticity and weldability as well as good resistance to high temperature oxidation and corrosion resistance, suitable for use in manufacture of high-pressure boiler wall, nuclear power heat exchanger, petroleum cracking device, etc..
牌號和標準
產品牌號： P91
Product grade: P91
執行標準：GB/T5310-2008 或技術協議
Applicable standard: GB/T5310-2008 or technical agreement
產品規格
主要產品The main products郵箱：4電話：0531-67606362

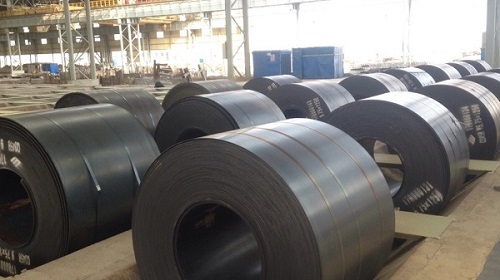

汽車大梁用熱軋鋼帶
Hot rolled steel strip for automobile frame
主要用途
汽車大梁系列用鋼產品主要用于商用車的主梁、橫梁、邊梁和車體等汽車結構性部件。要求具有足夠的抗拉強度、屈服強度、良 好的成型性、較高的延伸率和優良的冷彎性能，可滿足剪切、折彎、沖壓、輥壓、沖孔和焊接等多種加工要求，實物性能穩定。
AUTOMOBILE FRAME SERIES STEEL PRODUCTS ARE MAINLY USED IN MANUFACTURE OF THE MAIN BEAM, CROSSBEAM, SIDE-BEAM AND CAR BODY AND OTHER STRUCTURAL PARTS OF THE COMMERCIAL VEHICLE, WHICH ARE REQUIRED TO BE PROVIDED WITH SUFFICIENT TENSILE STRENGTH, YIELD STRENGTH, GOOD FORMABILITY, HIGH ELONGATION AND EXCELLENT COLD BENDING PROPERTIES THAT CAN MEET THE REQUIREMENTS OF SHEARING, BENDING, STAMPING, ROLL PRESSING, PUNCHING, WELDING AND OTHER PROCESSINGS, WITH STABLE PHYSICAL PROPERTIES.
牌號和標準
牌號： 510L、 610L、 700L、 J700、 J800 QStE380TM、 QStE420TM、 QStE460TM、 QStE500TM、 QStE700TMS420MC、 S460MC、S500MC、 S550MC、 S600MC、 S650MC、 S700MC
Grade: 510L, 610L, 700L, J700, J800 QStE380TM, QStE420TM, QStE460TM, QStE500TM, QStE700TMS420MC, S460MC, S500MC, S550MC, S600MC, S650MC, S700MC
執行標準： GB3273-2005《汽車大梁用熱軋鋼板和鋼帶》SEW092-1990《冷成型的熱軋細晶粒鋼》DIN EN 10149-2： 1996《冷成 型用的高屈服點鋼熱軋扁鋼產品》
Applicable standard: GB3273-2005: Hot-Rolled Steel Plate and Steel Strip for Automobile Frame SEW092-1990: Cold Formed Hot-Rolled Fine Grain Steel DIN EN 10149-2: 1996 Hot Rolled Flat Steel Products with High Yield Point for Cold Forming
產品規格
1.2～25.4×830～1900mm
汽車車輪用熱軋鋼帶
HOT ROLLED STEEL STRIP FOR AUTOMOBILE WHEEL
主要用途
汽車車輪系列用鋼主要用于制造汽車滾型車輪的輪輻和輪輞，要求具有良好的延伸凸緣性、冷成型性、閃光焊接性及疲勞性能等 綜合機械性能，而且應具有良好的表面質量和為保證車輪的氣密性及其運行時不產生大的旋轉振擺或失衡的尺寸公差。
Automobile wheel series steel products is mainly used for manufacture of spokes and rim for rolling-type wheel of a automobile, which are required to be provided with good flange elongation, cold forming, flash welding, fatigue properties and other mechanical properties, and should also have good surface quality and the dimensional tolerance to ensure the air tightness of the wheel and no large rotating vibration pendulum occurring in its operation.
牌號和標準
牌號： 330CL、 380CL、 420CL、 490CL、 SAPH310SAPH370、 SAPH400、 SAPH440、 SH540FB、 SH580FB、 HR440/580HE
Grade: 330CL, 380CL, 420CL, 490CL, SAPH310SAPH370, SAPH400, SAPH440, SH540FB, SH580FB, HR440/580HE
執行標準：YB/T4151-2006《汽車車輪用熱軋鋼板和鋼帶》JISG3113《汽車結構用熱軋鋼板和鋼帶》及公司內控標準 SGYJ-001-2015 《汽車車輪用高強度熱軋高擴孔鋼鋼板和鋼帶》GBT 20887.2-2010 《汽車用高強度熱連軋鋼板及鋼帶 第 2 部分： 高擴孔鋼》
Applicable standard: YB/T4151-2006: Hot-Rolled Steel Plate and Steel Strip for Automobile Wheel JISG3113: Hot Rolled Steel Plate and Steel Strip for Automotive Structures and SISG’s internal quality standards SGYJ-001-2015: High Strength Hot Rolled High Reaming Steel Plate and Steel Strip for Automobile Wheel GBT 20887.2-2010: High Strength Hot Rolled Steel Plate and Steel Strip for Automobile-Section 2 : High Reaming Steel
產品規格
1.2～25.4×830～1900mm
汽車用高強度熱軋雙相鋼帶
High strength hot rolled dual-phase steel strip fo
主要用途
熱軋雙相鋼一般用于需高強度、高的抗碰撞吸收能且有一定成型要求的汽車零件，如車輪、保險杠、懸掛系統及其加強件等。熱 軋雙相鋼具有強度高、屈強比低、初時加工硬化率高以及強度和韌性良好配合等優點，符合汽車材料輕量化、高性能、安全、環保、 節能的發展主題，從而在汽車行業得到了較為廣泛的應用。
The hot rolled dual-phase steel is generally used for automotive parts with high strength, high impact resistance and absorbing energy and should meet a certain forming requirement, such as wheels, bumpers, suspension systems and their reinforcing parts. The hot rolled dual phase steel is provided with high strength, low yield ratio, high initial processing hardening rate, excellent matching between strength and toughness and other advantages, in line with the development theme of lightweight, high performance, safety and environmental protection, energy saving for automotive materials, which has thus been widely used in the automotive industry.
牌號和標準
牌號： DP540、 DP600
Grade: DP540, DP600
執行標準： JGX677-2010 《高強度熱軋雙相鋼板和鋼帶供貨技術條件》GB/T20887.3-2010 汽車用高強度熱連軋鋼板及鋼帶-第三 部分，雙相鋼
Applicable standard: JGX677-2010: Technical Requirements for Supply of High Strength Hot Rolled Dual-Phase Steel Plate and Strip
GB/T20887.3-2010: High Strength Hot Rolled Steel Plate and Steel Strip for Automobile - Section III-Dual Steel
產品規格
1.2～25.4×830～1900mm
汽車傳動軸用熱軋鋼帶
Hot rolled steel strip for automobile transmission
主要用途
主要用于制作汽車傳動軸管，由于傳動軸管主要作用是支撐回轉體、傳遞動力，故要求材料應具有：足夠的強 度、剛度和一定的韌性以及較高的疲勞強度， 即要求原材料具有良好的綜合力學性能。 制造汽車傳動軸管一般采用直縫焊接工藝， 尺寸控制工藝采用通過控制外徑來控制內徑尺寸的方法，因此要求傳動軸管用鋼具有良好的焊接性能和高的尺寸精度。
Automobile transmission shaft tube steel is mainly used to make automobile drive shaft tube. As the main function of the transmission shaft tube is to support revolving body and transmit power, the material should be provided with: sufficient strength, stiffness and a certain degree of toughness as well as higher fatigue strength, that is, the raw materials should be provided with good comprehensive mechanical properties. The longitudinal welding technology is generally used to manufacture the automobile transmission shaft tube, and the dimension control process is based on the method of controlling the inner diameter by controlling the outer diameter; Therefore, the steel for the shaft tube of the transmission shaft should be provided with good welding performance and high dimensional precision.
牌號和標準
牌號： 440QZ、 480QZ、 700QZ
Grade: 440QZ, 480QZ, 700QZ
執行標準： JGX658-2010 《 440QZ、 480QZ 熱軋鋼帶技術協議》
Applicable standard: JGX658-2010: 440QZ, 480QZ Technical Agreement for Hot Rolled Steel Strip
產品規格
1.2～25.4×830～1900mm
石油天然氣輸送管用熱連軋鋼帶
Hot continuous rolling steel strip for petroleum a
主要用途
石油天然氣輸送管用熱連軋鋼帶具有較高的強度、高的塑韌性，低的韌脆性轉變溫度，良好的焊接性能以及優良的抗氫致開裂和 硫化物應力腐蝕開裂性能，主要用于制造輸送石油、天然氣、水煤漿等介質的管道。
The hot continuous rolling steel strip for petroleum and gas transportation pipeline is provided with high strength, high plasticity, low ductile brittle transition temperature,good weldability, good welding performance as well as excellent anti-HIC and sulfide stress corrosion cracking properties, which is mainly used in manufacture of?pipelines for transporting petroleum, natural gas, coal-water slurry and other media.
牌號和標準
執行標準： GB/T14164-2013 《石油天然氣輸送管用熱軋寬鋼帶》API Spec 5L 《管線鋼管》 ? GB/T9711.2-1999《石油天然氣工業輸送鋼管交貨技術條件》
GB/T14164-2013: Hot Rolled Wide Steel Strip for Transportation Pipeline of Oil and Gas Pipelines;
API Spec 5L: Steel Pipe for Pipeline ; ??GB/T9711.2-1999: Technical Specification for Delivery of Transportation Steel Pipe for Petroleum and Natural Gas?Industry
產品規格
4.0~25.4×830~1900mm
油井套管用熱連軋鋼帶
Hot continuous rolling steel strip for petroleum w
主要用途
主要作為焊接油井套管的原材料，公司油井套管用熱軋鋼帶具有尺寸精度高，焊接性能佳、作成焊管在地下服役時抗擠毀、抗壓 潰能力強的特點。
Mainly used as the raw material for welded petroleum well casing; SISG’s hot-rolled steel strip for petroleum well casing is characterized by high dimensional precision, good welding performance, and resistance to collapse and resistance to crushing when serving as welded pipe underground.
牌號和標準
執行標準：公司技術協議及 API Spec 5CT
Applicable standard: SISG’s technical agreement and API Spec 5CT
產品規格
3.5～25.4×830～1900mm
低鋁、低碳、低硅復合材料用熱軋鋼帶
Hot rolled steel strip for low aluminum, low carbo
主要用途
主要用作鋼鋁復合板基料。鋼鋁復合材料結合了鋼的高強度、易清洗和鋁的質輕、價廉、 優良的導電、導熱性等優點，在航空、機械、化工、醫療、汽車、電力等多方面領域得到了廣泛應用。
The hot-rolled steel strip for low aluminum, low carbon and low silicon composite materials is mainly used as base material for steel-aluminum composite plate. Steel aluminum composite has been widely used in many fields, such as aviation, machinery, chemical engineering, medical treatment, automobile, electric power and so on, thanks to its high strength, easy cleaning, light weight, low price, excellent electrical conductivity and thermal conductivity.
牌號和標準
牌號： YBFe、 SRG、 DK50、 DC01-LY
執行標準：技術協議
Grade: YBFe, SRG, DK50, DC01-LY
Applicable standard: Technical agreement
產品規格
2.0~6.0×900~1550mm
集裝箱用熱軋鋼帶
Hot rolled steel strip for containers
主要用途
集裝箱用鋼具有較高的耐大氣腐蝕性能，用于集裝箱外板、結構件等的制造。公司開發的集裝箱鋼采用低碳鋼中復合添加 Cu、 P、 Cr、 Ni 的合理成分設計，鋼材耐腐蝕性優異，而且尺寸精度、板型、表面質量、成型性指標良好，較好地滿足了集裝箱用鋼的使用 要求。
The steel for containers is provided with high atmospheric corrosion resistance, suitable for use in manufacture of container shell plate, structural parts and so on. The container steel developed by SISG is based on the design with reasonable composition of Cu, P, Cr and Ni added in the low carbon steel, with excellent corrosion resistance and precise dimension as well as good plate shape, surface quality and formability index, which can well meet the requirements for the container steel.
牌號和標準
牌號： SPA－H
Grade: SPA - H
執行標準： JIS G3125 《高耐大氣腐蝕軋制鋼板》
Applicable standard: JIS G3125: High Atmospheric Corrosion Resistant Rolled Steel Plate
產品規格
2.5～6.0×900～1350mm
主要產品The main products郵箱：5電話：0531-67606362
山鋼出口的鋼筋產品
SISG’s steel products for export
主要用途
牌號和標準
|
No. |
Supply grade |
Standard |
Specification mm |
Delivery status |
Application field |
|
1 |
British standard 460 (B) |
BS4449 |
Φ10-Φ50 |
Hot rolled |
Export, Foreign engineering construction |
|
2 |
British standard B500B |
BS4449 |
Φ10-Φ50 |
Hot rolled |
|
|
3 |
Japanese standard SD295A |
JISG3112 |
D10-D51 |
Hot rolled |
|
|
4 |
Australian standard 500N |
AS/NZS4671 |
Φ12-Φ36 |
Hot rolling/Controlled rolling |
|
|
5 |
Korean standard SD400 |
KS D 3504 |
D10-D5 |
Hot rolled |
|
|
6 |
Japanese standard SD390 |
JISG3112 |
D10-D51 |
Hot rolled |
|
|
7 |
Japanese standard SD390 |
ASTM A615-A615M |
3#-18# |
Hot rolled |
|
|
8 |
Malaysia |
MS146 |
According to user's requirement |
According to user's requirement |
產品規格
普通建筑用熱軋鋼筋
HOT ROLLED REINFORCING BARS FOR ORDINARY BUILDING
主要用途
牌號和標準
|
序號 |
名稱 |
牌號 |
規格 mm |
執行標準 |
用途 |
|
1 |
熱軋帶肋鋼筋盤條 |
HRB400/HRB400E/HRB500/HRB500E |
Φ6-Φ10 |
GB1499.2 |
建筑用鋼 |
|
2 |
熱軋光圓鋼筋盤條 |
HPB235/HPB300 |
Φ6-Φ22 |
GB1499.1 |
建筑用鋼 |
|
3 |
鋼筋混凝土用熱軋帶肋鋼筋 |
HEB335/HRB400/HRB500/HHB335E/HRB400E/HRB500E/HRB600 |
Φ10-Φ50 |
GB1499.2 |
建筑用鋼 |
No.
Name
Grade
Specification
mm
Applicable
standard
Purpose
1
Hot rolled ribbed steel bar wire roll
HRB400/HRB400E/HRB500/HRB500E
Φ6-Φ10
GB1499.2
Steel for building
2
Hot rolled plain round steel bar roll
HPB235/HPB300
Φ6-Φ22
GB1499.1
Steel for building
3
Hot rolled ribbed steel bar for
reinforced concrete
HEB335/HRB400/HRB500/ HHB335E/HRB400E/HRB500E/
HRB600
Φ10-Φ50
GB1499.2
Steel for building
產品規格
特殊用途棒材
Bar materials for special purpose
主要用途
牌號和標準
|
No. |
Steel grade |
Steel grade |
Specification mm |
Applicable standard |
Purpose |
|
1 |
Anti-seismic Reinforceing steel bar |
HRB335E/HRB400E/HRB500 |
Φ10-Φ50 |
GB1499.2 |
Applied to seismic prone areas and building with high requirements or super high-rise buildings with special use requirements, large-span bridges, airports, nuclear power plants, tunnels, water conservancy projects and other fields. |
|
2 |
Finish rolling thread steel |
PSB785/PSB 830/HRB500JZ |
Φ25, Φ32 |
GB/T20065 |
Used in continuous beam and large frame structure in super large building, large water conservancy project, industrial and civil buildings, and highway and railway large and medium span bridges, nuclear power plant, ground anchors and other projects. |
|
3 |
Hot rolled Round steel |
20MnSi |
Φ14-Φ60 |
Φ14-Φ60 |
Used in manufacture of chains |
|
4 |
Anchor rod Reinforceing steel bar |
MG335 |
Φ18-Φ22 |
LGJX16-2011 |
Mainly used in coal mine roadway support, and also suitable for use in highway tunnel support and side rock protection. |
|
MG400 |
|||||
|
MG500 |
LGJX12-2011 |
||||
|
Full-strength anchor rod |
LGJX14-2011 |
||||
|
Right-screw anchor rod |
Φ16-Φ22 |
LGJX02-2010 |
|||
|
CRM600 |
Φ22 |
||||
|
CRM600 |
Φ220, Φ22 |
LGJX49-2010 |
|||
|
5 |
Resin anchor Rod steel bar |
MG335-MG600 |
Full sizes |
Full series |
產品規格
魯公網安備 37010102000509號
